Necessary PVC conveyor belt in industrial production line

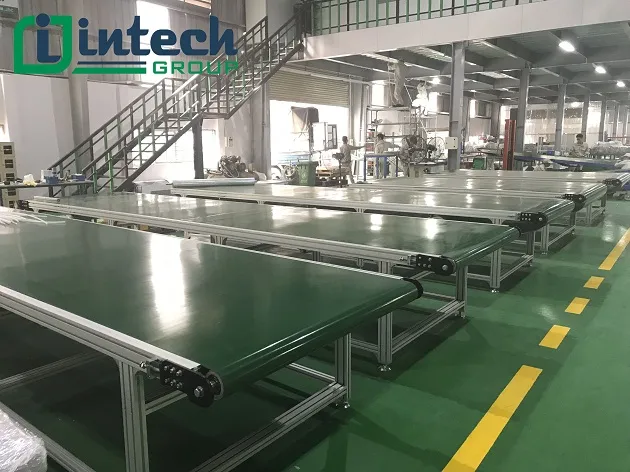

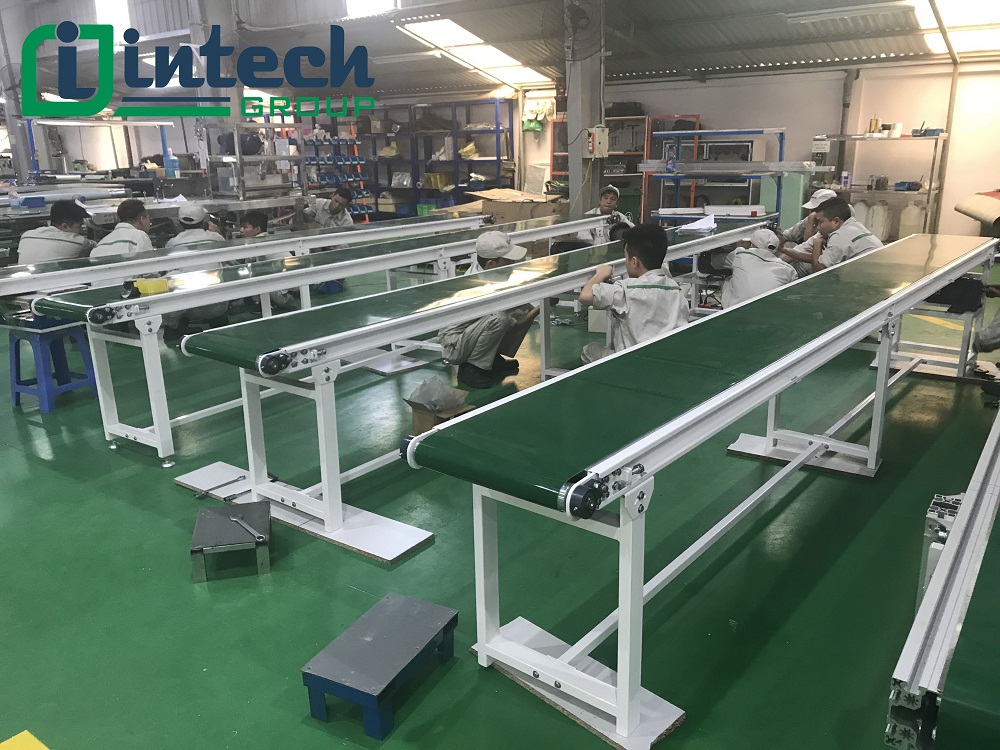

PVC conveyor belt is widely used in industrial production lines to help speed up the production process, create high efficiency, and ensure continuous production. Conveyor belts will be designed and assembled in accordance with each product to ensure the safety of the moving process on the conveyor belt and maximize the cost savings for businesses.
There are many types of PVC conveyor belts for customers to choose from to suit the type of industrial production, to avoid wear and tear, and to ensure a long service life. Therefore, customers should pay attention when choosing the most suitable industrial conveyor belt.
Basic characteristics of conveyor belt PVC:
- The structure of PVC conveyor belt is simple: high quality PVC conveyor belt, the belt has smooth and rough surface.
- High elasticity, scratch-resistant surface, good heat-resistant PVC conveyor belt
- There are blue, white, gray conveyor belts...
- High durability, no stretch when using
- Resistant to moisture, acid, oil, gas, sunlight...
- Resistant to peeling, tearing and impact of weight
- Heat-resistant conveyor belt with high temperature, good wear resistance
- No adhesion to material moving on the tape
- Commonly used conveyor frames are aluminum profiles or stainless steel and steel frames
- The thickness of the tape is 1mm, 2mm, 3mm, 4.5mm and 5mm with a smooth top design with a layer of white paint to ensure a smooth, quick operation.
- PVC conveyor belts are easy to assemble and maintain at low cost
Types of PVC conveyor belts commonly used today:
* 2-layer PVC conveyor belt:
When used with higher efficiency in conveying goods, this is a highly economical conveyor belt because it is used to convey many products at the same time.
Structure of 2-layer PVC conveyor belt:
- Dimensions of the first floor: W5000*L1290*H400
- 2nd floor size: W4600*L1290*H750
- 0.37Kw 3-phase 380V inverter geared motor
- 40x80 . profile aluminum frame
- 2mm thick PVC tape, light gray color
- Adjustable foot.
* Folding PVC conveyor belt:
Used to transport products in uneven positions, with suitable inclination convenient for moving goods through each stage of production.
Structure of PVC folding conveyor belt:
- Frame for folding conveyor belt Z:NDH 30x60.
- Working table: Table top SUS 201,t=0.8mm, support frame 30x30x0.8 (galvanized).
- Blue PVC matte belt, t=0.5mm.
- Active lot: galvanized steel, Ø76.
- Passive lot + coupling lot: galvanized steel, Ø50.
- Lower belt support: galvanized steel,Ø38.
- Angle belt tensioner: SUS 201, Ø76.
- Motor ZD180W,VAC 220V, i=1/30. There is an electrical cabinet.
- D60 . adjustable feet
* Tilt PVC Conveyor:
Assembled for high moving locations suitable for all types of production. Conveyor assembly inclined to ensure continuous and stable operation of the line. The inclination of the conveyor does not affect the movement of the product, still ensuring the safety of the product when moving on the conveyor.
Structure of inclined PVC conveyor belt:
- Conveyor frame with aluminum profiles 30x60mm
- 2mm thick blue PVC conveyor belt.
- Geared motor ZD 120w, VAC 220V, i=30.
- Speed controller, conveyor reverse.
- Lead screw crank adjustment feet: Low leg 850 - 120mm, long leg 1200 - 1500 mm. Powder Coating.
- M12x60 . adjustable feet
* Double PVC conveyor belt:
Using double conveyor belt helps to double product conveying, shortening time and increasing productivity quickly, meeting the requirements of transporting large quantities of goods.
Specifications of double conveyor system:
- Dimensions: W890*L6000*H700-1500.
- The frame is equal to the 30x60 and 30x30 equations.
- PVC belt t=2mm.
- Geared motor 60w, 220v VAC, i-30.
- Conveyor fitted with additional air lines.
- Electrical cabinet included.
- D60 adjustable feet.
Application of industrial conveyor belt using plastic conveyor belt PVC
With its superior features, conveyor belts are widely used in industrial production such as leather shoes, food, automobiles, pharmaceuticals, components, cosmetics, jewelry, seafood... Based on The basic characteristics of PVC conveyor belts that are selected to assemble the conveyor belt to suit the purpose of use.
Intech is a reputable and best quality conveyor assembly manufacturer with many models according to customer requirements, products are assembled to ensure the correct technical requirements, are tested and tested before being delivered. to customers by an experienced technical team. When needing to order conveyor belts or consultation about Intech PVC conveyor belt products, customers can contact Intech directly for answers. Contact us for a price quote for PVC conveyor belts according to the needs of customers to ensure maximum cost savings.
- Hotline contact: 0983 11 33 87 - 0966 966 032
- Email: info@intech-group.vn
