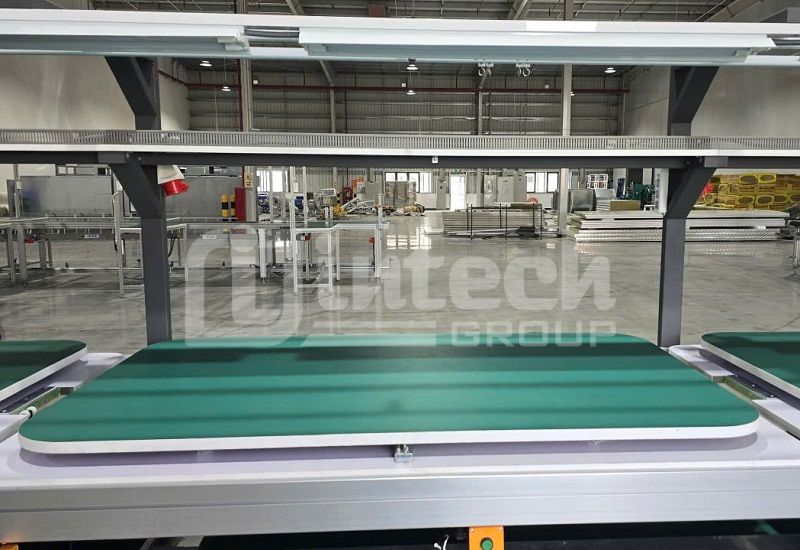

25m Jig Return Conveyor for Canadian Factory
11-08-2025 151
With modern design and superior features, Jig return conveyor not only meets international standards but also brings outstanding efficiency in productivity and operating costs.
Mục lục
Intech Group, one of the leading units in Vietnam in the field of designing and providing automation solutions, has just completed and successfully handed over a 25-meter Jig return conveyor system to a Canadian factory in Vietnam. This system has been successfully tested, marking an important step in optimizing the production process at the factory.
Overview of the 25m Jig Return Conveyor Project
The 25-meter Jig return conveyor project was designed and implemented by Intech Group specifically for a Canadian factory located in Vietnam. This factory operates in the field of industrial production, requiring high-precision product assembly and inspection processes.
The conveyor system is designed to transport the Jigs - specialized trays that hold products throughout the production process - through the work stations automatically and cyclically. With a length of 25 meters, this system is optimized to meet the needs of continuous production, while ensuring high flexibility and efficiency.
.

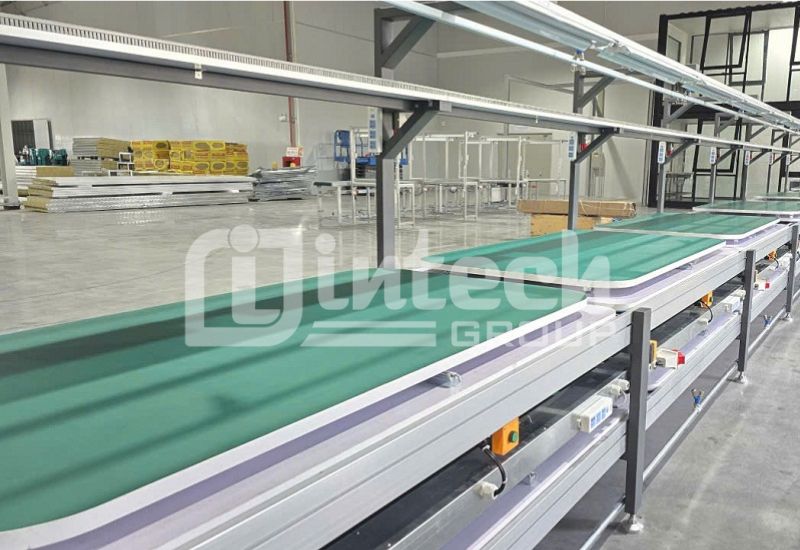

Main structure of the Jig return conveyor system
The 25 meter Jig return conveyor system is designed with the following main components:
- Freeflow chain conveyor transporting the Jig operation: allows smooth and precise transport of the Jig through the work stations. Freeflow chain technology helps to minimize friction, ensuring stable movement and is suitable for complex assembly or inspection operations.

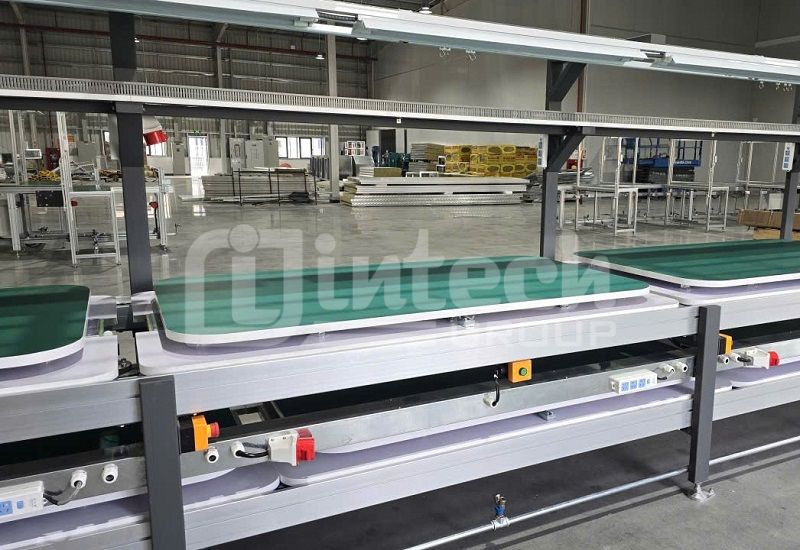

- Control button at each station: Each work station is equipped with a control button, allowing workers to actively transfer the Jig to the next stage after completing the operation. This feature not only helps control the production progress but also increases flexibility, allowing workers to work at their own pace without interrupting the line.
- Lighting and overhead shelves: provide adequate lighting for workers to perform assembly or inspection operations under optimal conditions.
- Jig return cluster: At the end of the line, after the finished product is removed, the empty Jig will be automatically returned to the first station by the conveyor system. This mechanism ensures the cycle of the process, minimizes waiting time and eliminates the need to use a new Jig tray.
Jig return conveyor system operating principle
The Jig return conveyor system operates in a closed and efficient process, including the following steps:
- Starting at station 1: The Jig containing the product is brought to the first station, where workers perform assembly or quality inspection operations.
- Moving the Jig to the next station: the worker presses the control button, the freeflow chain conveyor system will automatically push the Jig to the next station to continue the production process.
- Repeating the process through stations: This process is repeated through all the work stations on the line. Each station can be arranged to perform a specific step, from component assembly to quality inspection.
- Jig Return to the First Station: When the Jig reaches the last station, the finished product is removed. The empty Jig is returned by the conveyor system below to the first station, ready for a new production cycle.
Advantages of the system Jig Return Conveyor System
The Jig 25 Return Conveyor System offers many outstanding benefits, helping to optimize the production process at the Canadian factory:
- Save labor:
With the ability to automatically transport Jigs through stations, workers do not need to move much, thereby minimizing labor and increasing concentration on technical operations. This is especially important in production lines that require high precision.
- Production progress control:
The system only moves the Jig when the worker completes the operation and presses the control button. This mechanism helps to strictly control the production pace, while protecting the conveyor motor from continuous running/stopping - the main cause of motor damage in the long term.
- Increased productivity:
The system allows multiple workers to be arranged on the same line, with each person taking on a specific stage. This helps to optimize production time, increase overall productivity and meet large orders in a short time.
- Recirculation:
The Jig return mechanism ensures that Jig trays are continuously reused, returning to the starting point without the need for new trays. This not only saves costs but also contributes to minimizing resource waste, in line with sustainable production standards.
Significance of the Jig Return Conveyor Project
The 25-meter Jig Return Conveyor Project implemented by Intech Group is not only a technical achievement but also has great significance for the manufacturing industry in Vietnam:
- Improving domestic production capacity: The successful implementation of a modern system for a Canadian factory in Vietnam demonstrates the design and manufacturing capacity of Vietnamese enterprises, especially in the field of industrial automation.
- Meeting international standards: The conveyor system is designed and operated according to the strict standards of the Canadian factory, contributing to affirming Vietnam's position in the global supply chain.
- Promoting digital transformation and automation: This project is a typical example of applying
- Promoting digital transformation and automation: This project is a typical example of applying automation technology in production, helping factories optimize processes, reduce costs and improve product quality.
Practical applications and development potential
The 25-meter Jig return conveyor system is suitable for many industries, especially those requiring complex assembly or inspection processes, such as the production of electronic components, automobiles, medical devices, or high-tech products. With a flexible design, this system can be customized in length, number of workstations, or integrated with additional features such as automatic sensors, monitoring screens, or production data management systems.
In the future, similar conveyor systems can be expanded to integrate with more advanced technologies, such as artificial intelligence (AI) or the Internet of Things (IoT), to provide real-time monitoring and optimization of production processes. This will help factories not only increase productivity but also better meet the requirements of the international market.
Intech Group affirms its position with international standard free-flow conveyor project
The free-flow conveyor project implemented by Intech Group for the Canadian factory in Vietnam is a clear demonstration of the development of the automation industry in Vietnam. With its smart design, superior features and efficient circulation, this system not only helps optimize the production process but also brings long-term economic and environmental benefits.
This project not only affirms Intech Group's capacity but also contributes to enhancing Vietnam's position in the global industrial manufacturing sector.
