When choosing a conveying solution for your project, there are many types of conveyors to choose from. Most people are familiar with roller conveyors, which offer the most design flexibility and the lowest total cost of ownership compared to all other conveyor types. Plastic roller conveyors have many advantages over steel or stainless steel roller conveyors with their high corrosion resistance and cost effectiveness.

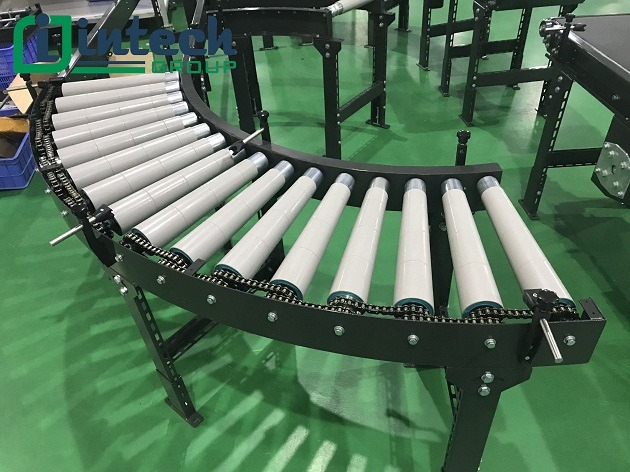

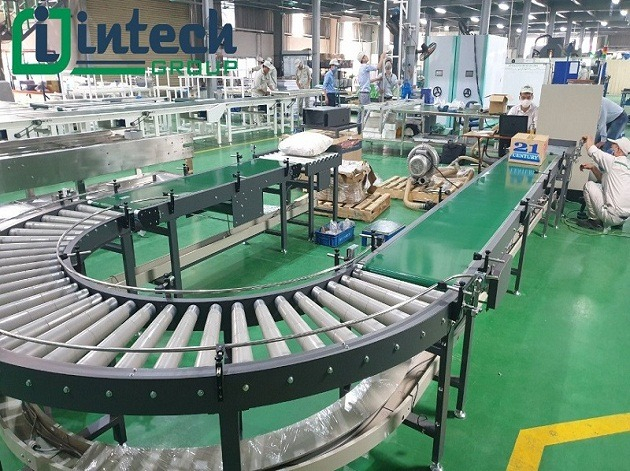

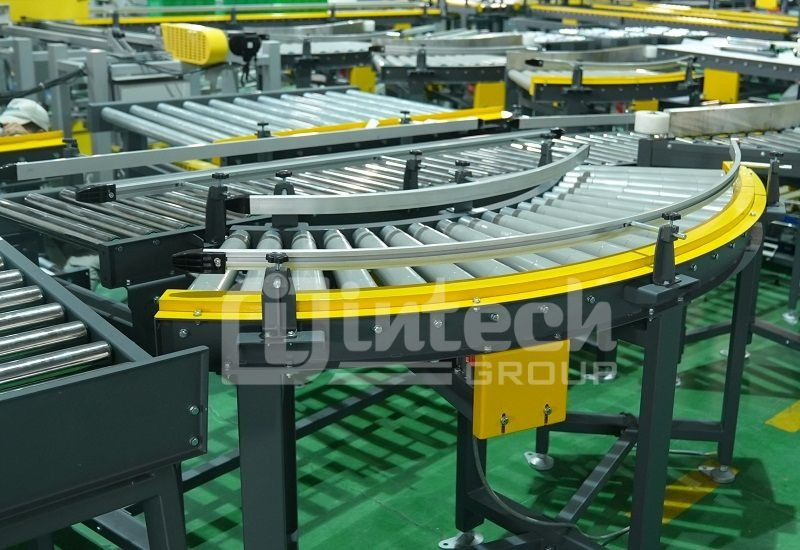

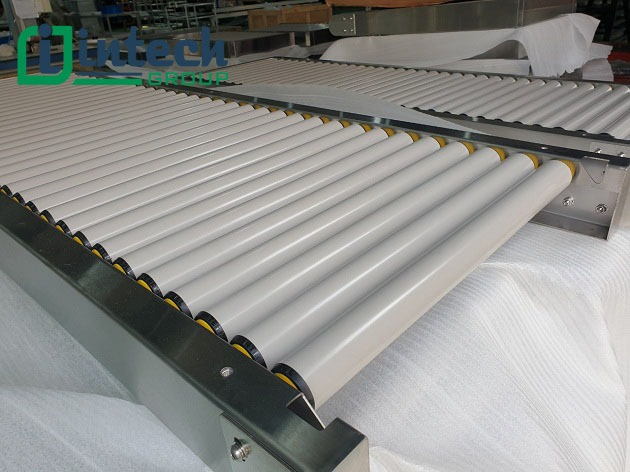

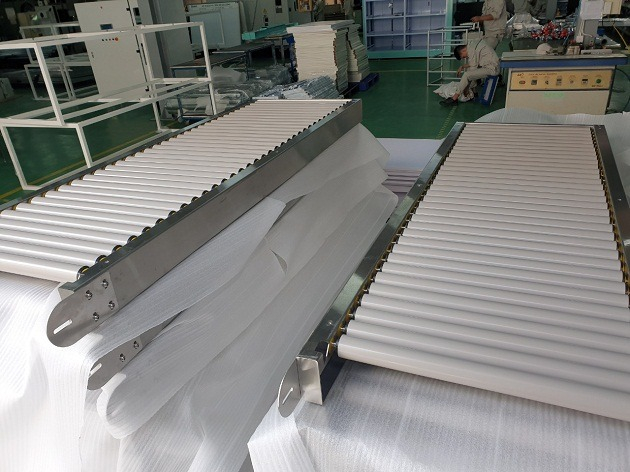

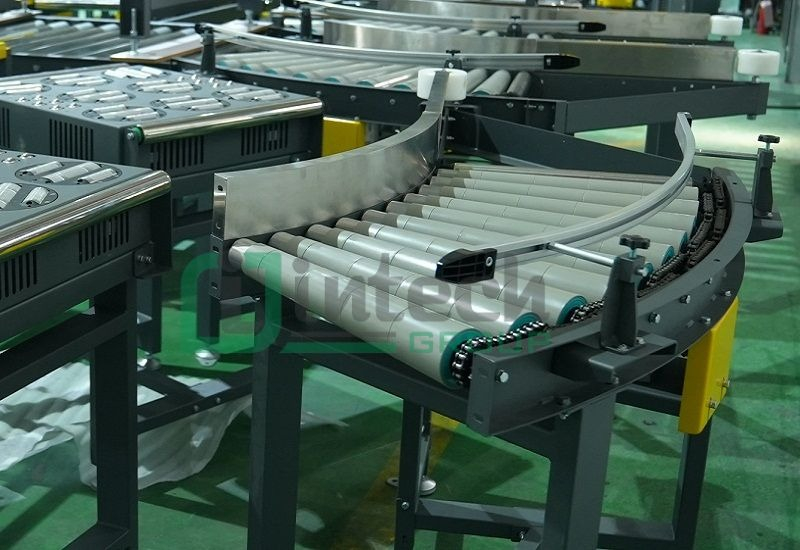

What is a Plastic Roller Conveyor?
Plastic roller conveyor is a device for transporting goods from light, medium to heavy loads, applied in industries including manufacturing, warehousing, commerce, logistics...
Structural characteristics of plastic roller conveyor:
Plastic roller conveyor is designed with the following main components, each component plays an important role in ensuring the operating efficiency of the system:
- Conveyor frame made of galvanized steel, sturdy aluminum profile, high hardness, helps support and provide stability for the entire conveyor system
- Conveyor roller system is made of PVC (Polyvinyl Chloride), PP (Polypropylene) or PE (Polyethylene). Good load-bearing capacity, abrasion resistance
- Diameter of plastic conveyor rollers made to order, range 25mm - 80mm
- Roller length: 200mm - 2000mm
- Conveyor belt moving speed: 0.1m/s - 2m/s
- Maximum load: 5kg - 100kg/roller
- High quality bearings, ensuring easy roller rotation, with waterproof and dustproof protection
- Roller shafts made of stainless steel or aluminum, increasing the durability of the system
- The electric motor is attached to the conveyor frame, which is the main driving force to move the conveyor.
- Belt or chain system to transmit power from the motor to the rollers.
- Other details such as Screws and bolts are used to fix and connect the conveyor parts.
- There may be a base to support and adjust the height of the conveyor.
Features and benefits of Plastic Roller Conveyors
Plastic roller conveyors offer several benefits, including:
- Easy to install and use: Plastic rollers install easily into conveyor systems and require low maintenance
- Versatility: Plastic roller conveyors can be customized in a variety of sizes and designs to accommodate a variety of products.
- Less vibration: Plastic roller conveyors reduce overall vibration, resulting in greater efficiency.
- Cost-effective: They are an economical choice compared to other types of conveyors. They will also extend the life of your conveyor system, saving you money over time.
- Conveyors that use plastic rollers have a hard surface that reduces the likelihood of dirt sticking and is easier to clean if there is a light buildup.
Disadvantages of using plastic roller conveyors
Although plastic roller conveyors have many benefits, there are also some disadvantages to note. Here are some disadvantages of plastic roller conveyors:
- The heat and chemical resistance of plastic roller conveyors is limited, so they are not suitable for some applications that require superior durability in high temperature environments or exposure to harsh chemicals.
- Can be affected by sunlight and ozone, so they need to be stored and maintained properly to ensure the durability and longevity of the plastic roller conveyor.
- Plastic roller conveyors are often used for products with medium or light loads, so they are not suitable for heavy or large products.
- During use, plastic roller conveyors can be scratched or damaged, requiring regular inspection and maintenance to ensure the efficiency of the conveyor system.
Applications of Plastic Roller Conveyors
Plastic roller conveyors are ideal for light loads and indoor and outdoor use, especially in wet conditions. They feature stainless steel shafts and bearings making them reliable for wet and washdown applications. Their corrosion resistance makes them ideal for use in chemical and acid applications in many industries.
Plastic conveyors are also ideal for use in the food and beverage industry. They also work well for manual assembly lines and warehouses with lighter loads.
Latest Plastic Roller Conveyor price list
Plastic roller conveyor prices depend on many factors such as the plastic material used, the size, thickness and length of the conveyor, as well as the quantity of conveyor ordered. However, the price of plastic roller conveyors usually ranges from 50,000,000 to 500,000,000 VND depending on the specific requirements of the customer.
If you are interested in purchasing plastic roller conveyors, you should contact a conveyor supplier to request a specific quote for your needs. You should also consider other factors such as the quality, durability and longevity of the product before deciding to purchase a plastic roller conveyor.
Address of reputable plastic roller conveyor manufacturers, good prices
If your conveyor needs to support light loads, transport in wet conditions, plastic roller conveyors are an ideal solution and Intech Group is always ready to help.
Intech Group manufactures roller conveyors with many customized solutions to suit your application. Plastic roller conveyors are designed and assembled by us according to customer requirements, in order to maximize efficiency and save costs for businesses. The conveyor is tested before being delivered to the customer's location, we instruct the conveyor to run by highly skilled technicians to ensure safety during use.
Contact Intech Group today for detailed product information and specific quotes.
