Chain drive roller

Mục lục

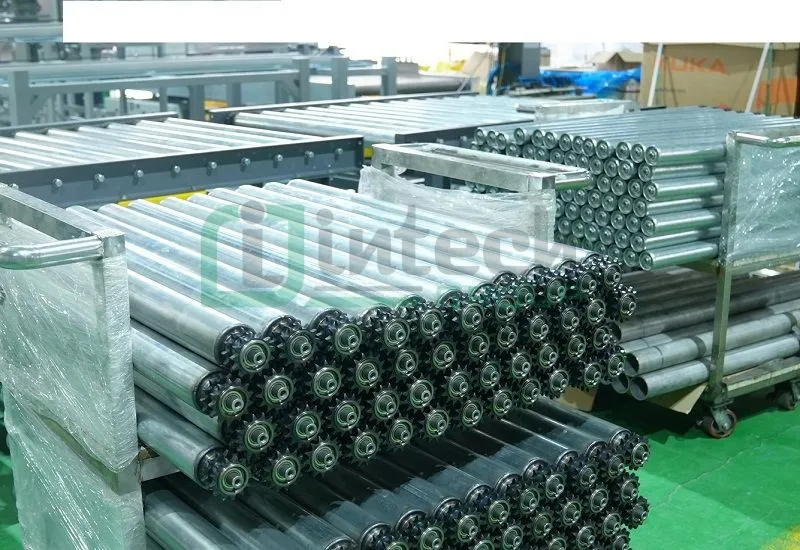

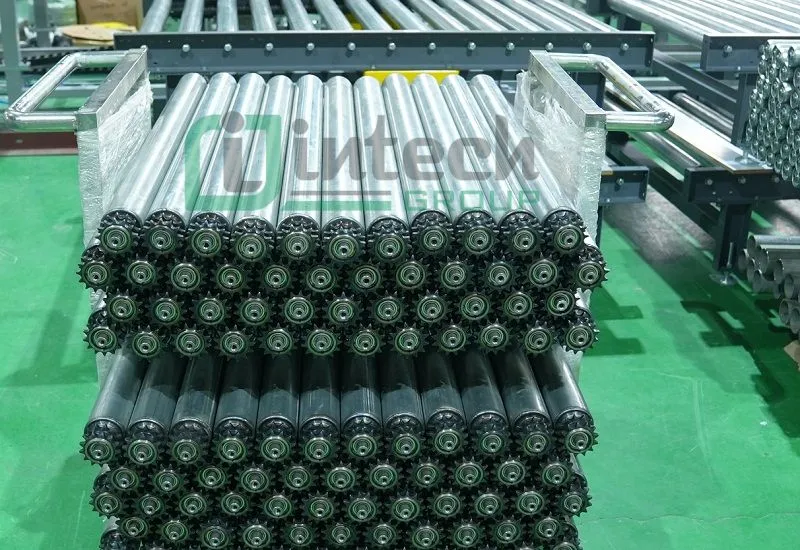

About Intech chain drive roller:


Chain drive rollers are used as conveyor belts, are widely used in industry, perform well in many harsh environments. Chain drive roller conveyor systems operate by motor pull. Chain drive rollers are often used to move products and goods in production areas or in warehouses. Intech's chain drive rollers are researched and developed according to international standards, from roller structure to fabrication materials.


Product features:


  • Chain drive roller has no slip phenomenon like belt drive, can work in sudden overload, high transmission efficiency.
  • The load-bearing assembly consists of a precision ball bearing, a polymer housing and a sealed cover. Creates a sleek, smooth, and quiet roller.
  • The design of the rear cover protects the bearings preventing dust and water from entering the rollers causing damage to the bearings.
  • The maximum speed does not exceed 90m/min, the maximum load can be up to 500kg/m.
  • Temperature: - 5 ℃ ~ + 40 ℃.


Intech chain drive rollers include the following main types:


  • Single chain drive roller R2214RT, R2311RT, R2411RT (Picture below);
  • Double chain drive roller R2224RT, R2321RT, R2421RT (Picture below);
  • R2624RT tapered chain drive roller (Picture below);


Regarding materials for chain drive rollers, there are:


  • Steel roller material;
  • Stainless steel roller material;
  • Roller material made of plastic;


Chain drive sprocket materials also include:


  • Transmission sprocket material steel;
  • Stainless steel transmission sprocket material;
  • Transmission sprocket material made of high wear-resistant plastic;


Outstanding advantages of Intech rollers:


  • Using standard materials, the roller tubes are all ordered according to the standard tubes, ensuring the chemical composition of the materials, the roundness of the tubes (very important point);
  • Quality bearing ring, making long life and durability of rollers;
  • The roller structure is delicately designed, ensuring the ball's grease retention and good dust resistance;
  • All rollers are rigorously tested through many stages before being shipped;

In addition, if you need advice on techniques, applications and uses of chain drive rollers, please contact us directly for the best support. Hotline: 0966 966 032


R2214RT R2224RT R2311RT
R2321RT R2411RT R2421RT
R2624RT
